Indoor / Outdoor Sliding Gate Turnstile Customized Stroke For Medium / Large Pedestrian Flow

Supply Ability : 500 units per month

Brand Name : GUIANKEJI

Name : Sliding Gate Turnstile

Model Number : pyz-001

Core Structural Advantages : 1. All structural parts are precisely CNC machined. Equipped with high-strength bearings and slide rails to guarantee long service life and structural rigidity. Adopts connecting rod mechanism to realize self-locking during gate opening & closing; silent b

MOQ : 2 sets

Delivery Time : 30 to 90 days

Operating Voltage : DC 24V

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Application Scenarios : Serves as the opening & closing drive component for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Especially suitable for turnstile lanes with medium & large pedestrian flow demand.

Price : Discuss based on needs

Optional Motors : Brushless motor, brushless servo motor, servo motor

Certification : EMC-FCC

Customizable Item : Adjustable stroke available for customization

Place of Origin : China

Lane Dimension : 500mm–1200mm (customizable)

Packaging Details : Wooden case

Contact Now

Sliding Gate Mechanisms Customizable Stroke Medium & Large Pedestrian Flow
Economic sliding turnstile core mechanism designed for pedestrian flow control in various security applications.
Product Specifications
Product Name Economic Sliding Turnstile Core Mechanism
Application Scenarios Acts as the opening and closing drive assembly for turnstiles in residential communities, office buildings, airports, government institutions and other venues. Especially ideal for lanes with low pedestrian flow demand.
Custom Stroke Customizable stroke range: 500-600mm
Lane Width 500mm-600mm (customizable)
Operating Voltage DC 24V
Optional Motor Configurations Brushless motor, brushless servo motor, servo motor
Structural & Running Features
  • All structural components are precisely CNC machined. Equipped with high-strength bearings and slide rails to ensure outstanding durability and structural strength.
  • Adopts connecting rod self-locking structure for gate opening & closing; silent ball linear guides deliver ultra-quiet operation.
  • Suitable for both indoor and outdoor installation.
  • Passing speed: 30-40 persons per minute
  • Operating temperature: -25°C ~ 75°C
Product Images
Indoor / Outdoor Sliding Gate Turnstile Customized Stroke For Medium / Large Pedestrian Flow

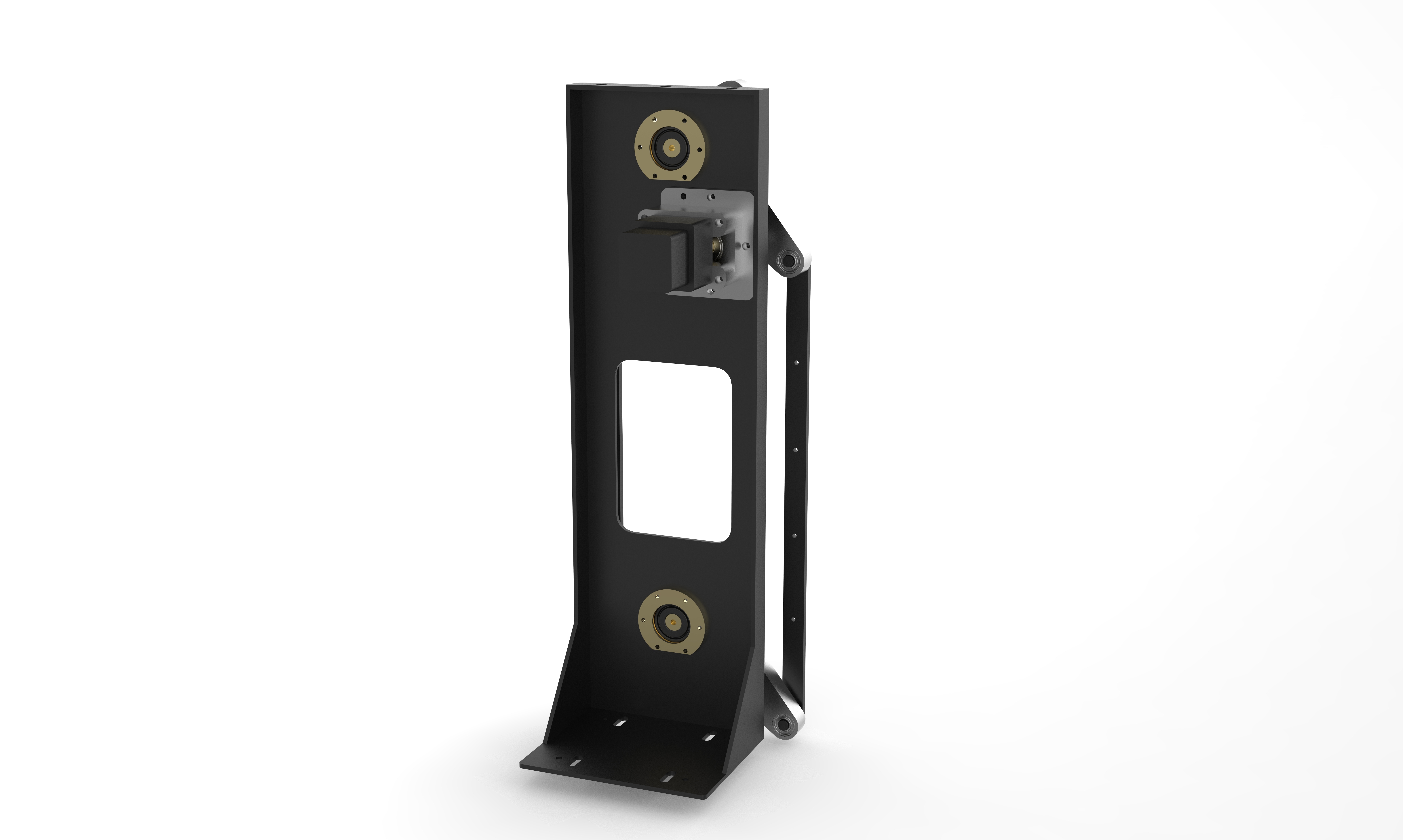

Economic sliding turnstile core mechanism detailed view
Indoor / Outdoor Sliding Gate Turnstile Customized Stroke For Medium / Large Pedestrian Flow
Economic sliding turnstile core mechanism installation example
