Security 168mm Cylindrical Swing Barrier Turnstile Gate Automatic Door Access Control System

Supply Ability : 300 units per month

Model Number : 168-001

Structure & Material : Gate body: 2.0mm thick seamless 304 stainless steel pipe. Advanced internal mechanical structure with clutch locking function and anti-push lock function. Top tri-color indicator light: blue for standby, green for communication, red for unauthorized intrus

MOQ : 1 sets

Delivery Time : 30 to 90 days

Operating Temperature : -25°C ~ 75°C

Payment Terms : D/P,D/A,L/C,Western Union,T/T

Price : Discuss based on needs

Application Scenarios : The 168mm diameter integrated cylindrical speed gate applies to residential communities, office buildings, airports, government facilities and other high-security venues. Access control devices including face recognition terminals, card readers and QR code

Certification : EMC-FCC

Safety & Performance : Built-in infrared and mechanical anti-pinch functions. Applicable for indoor and outdoor installation.

Brand Name : GUIANKEJI

Power Supply : Operating voltage: 24V DC

Place of Origin : China

Passing Speed : 20–30 persons per minute

Packaging Details : Wooden case

Contact Now

Swing Gate Mechanisms Integrated Cylindrical Rapid-Access Door
Product Overview

Integrated cylindrical rapid-access door with a diameter of 168 mm, designed for high-security applications with efficient personnel flow management.

Key Specifications
Diameter 168 mm
Passing Speed 20-30 persons per minute
Operating Temperature -25°C to 75°C
Power Supply 24V DC
Application Scenarios

This 168mm diameter integrated cylindrical speed gate is engineered for high-security venues including:

  • Residential communities
  • Office buildings
  • Airports
  • Government facilities

Supports integration with access control devices including face recognition terminals, card readers, and QR code scanners. Particularly suitable for narrow sites with limited installation space.

Technical Features
Structure & Material

Gate body constructed from 2.0mm thick seamless 304 stainless steel pipe. Advanced internal mechanical structure with clutch locking and anti-push lock functions.

Safety & Performance

Built-in infrared and mechanical anti-pinch functions. Suitable for both indoor and outdoor installation.

Channel Dimensions

Maximum passage width: 1000mm (single gate), 1800mm (double gate)

Visual Indicators

Tri-color top indicator light: blue for standby, green for communication, red for unauthorized intrusion.

Optional Configurations
  • Brushless motor
  • Brushless servo motor
  • Servo motor
Product Images
Security 168mm Cylindrical Swing Barrier Turnstile Gate Automatic Door Access Control System

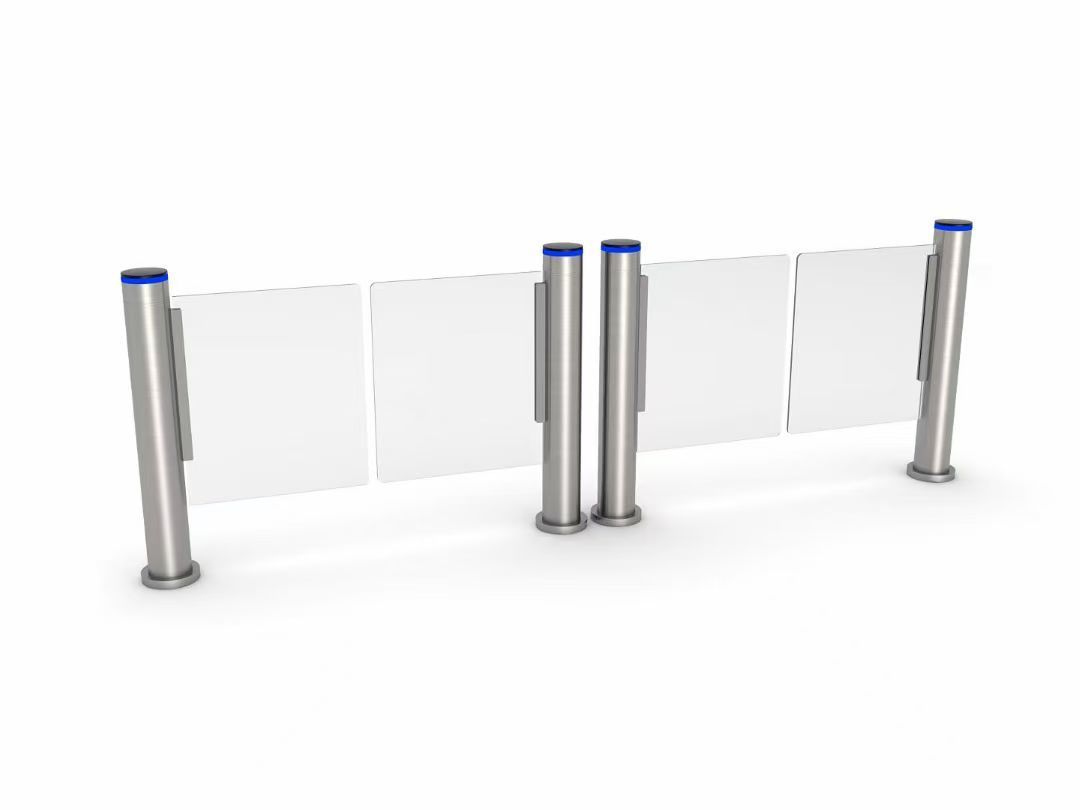

Installation view of integrated cylindrical rapid-access door
Security 168mm Cylindrical Swing Barrier Turnstile Gate Automatic Door Access Control System

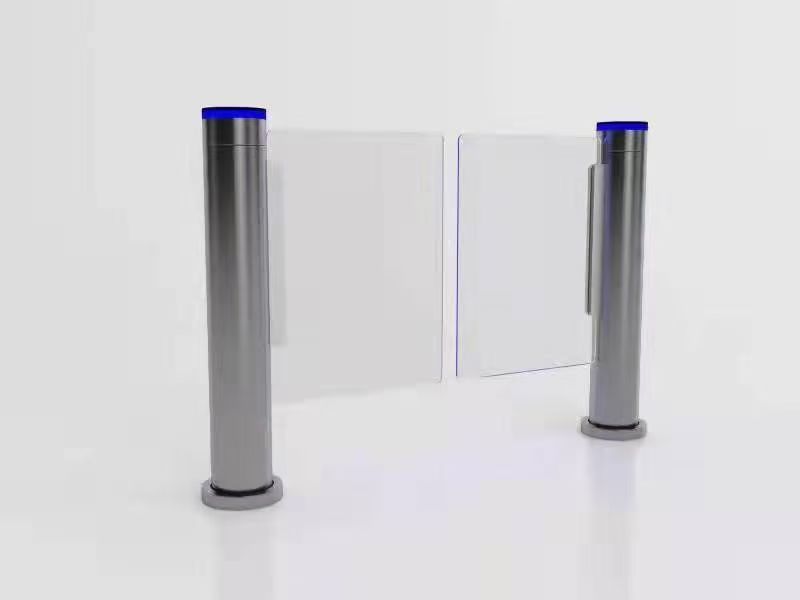

Close-up view of 168mm diameter cylindrical speed gate mechanism
