Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile

Name: Full Height Turnstile Mechanism FullAutomatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile
Brand: GUIANKEJI
Price: 1 USD

Quality Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile for sale

Supply Ability : 1000units per month

Solenoid Valve : DC24V

Model Number : ZJJX-001

Operating Ambient Temperature : -30℃ ~ 60℃

MOQ : 1 sets

Delivery Time : 30 to 90 days

Required Top Cover Height : ≥190mm

Payment Terms : L/C,D/A,D/P,T/T

Movement Operating Voltage : DC24V

Mounting Dimension : 340mm*210mm

Price : Discuss based on needs

Motor : Model 80 Eccentric Shaft Brushless Motor, 24V 80W

Passing Capacity : Approx. 30 persons per minute

Gate Opening & Closing Time : Approx. 0.6 seconds

Certification : EMC-FCC

Place of Origin : China

Brand Name : GUIANKEJI

Model : FAT-QGJX1

Packaging Details : Wooden case

Contact Now

Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement

High-performance movement mechanism designed for full automatic tripod turnstiles, providing reliable access control with advanced security features.

Technical Specifications

Parameter Item	Parameter Value
Model	FAT-QGJX1
Mounting Dimension	340mm * 210mm
Required Top Cover Height	≥190mm
Solenoid Valve	DC24V
Movement Operating Voltage	DC24V
Motor	Model 80 Eccentric Shaft Brushless Motor, 24V 80W
Control Signal	Switch Signal
Passing Capacity	Approx. 30 persons per minute
Card Reader Mounting Positions	2 sets
Gate Opening & Closing Time	Approx. 0.6 seconds
Operating Ambient Temperature	-30℃ to 60℃

Key Features & Functions

Driven by high-power motor with electromagnetic locking system that resists unauthorized pushing and automatically releases only when arm resets to zero position
After card verification, motor rotates arm 5-10 degrees as passage prompt, allowing light push to drive automatic rotation to designated position
Reverse pushing triggers electromagnetic lock that releases only when arm returns to zero position
Eliminates locking defects of clutch-type movements, preventing unauthorized forced access through repeated pushing
Quieter and vibration-free operation with auto rotation, non-overheating electromagnet, and reliable anti-reverse rotation angle control
Advanced technology with premium appearance, ideal for high-end venues and applications

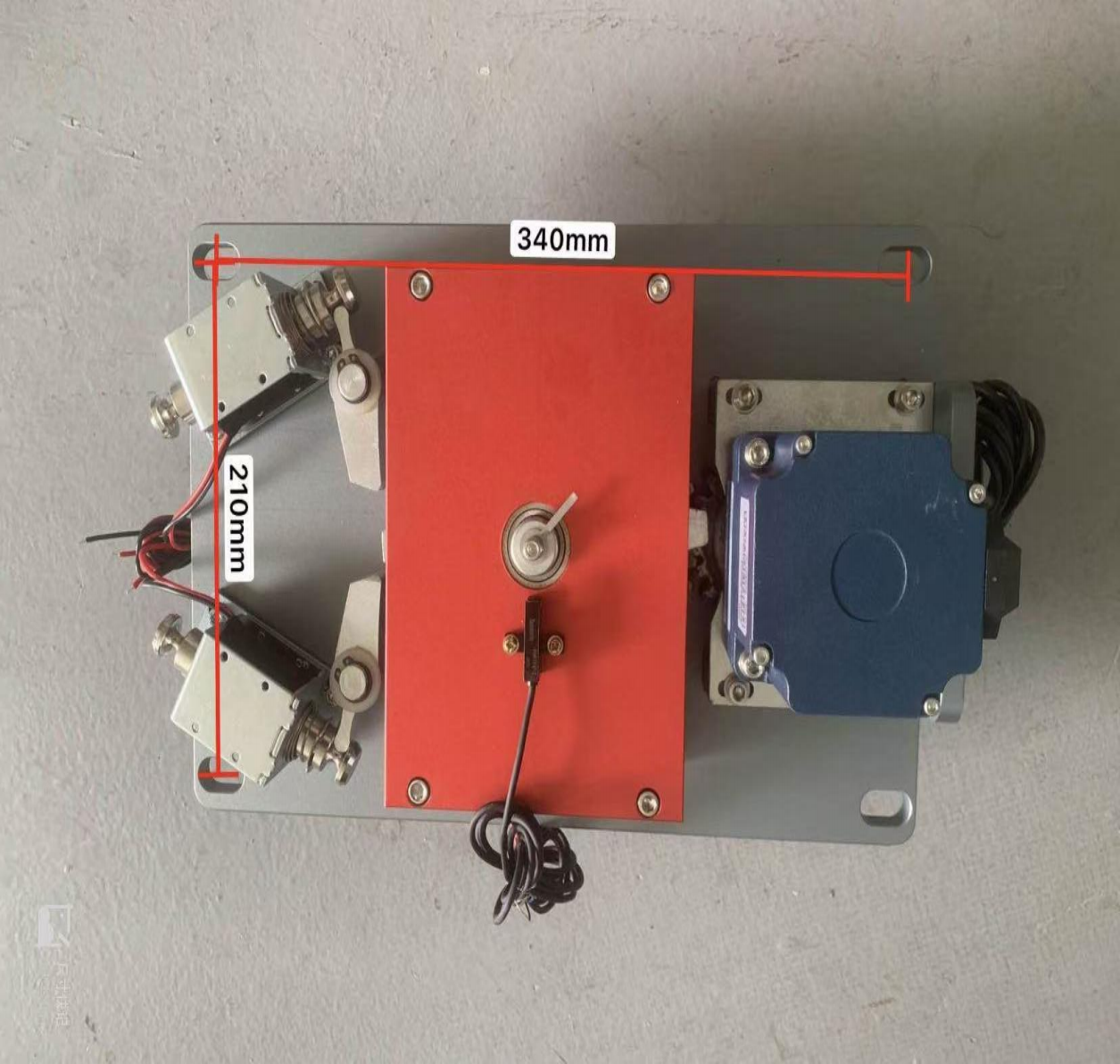

Product Images

Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile

Full Height Turnstile Mechanism Full-Automatic Tripod Turnstile Movement Movement for Full Automatic Tripod Turnstile Images
